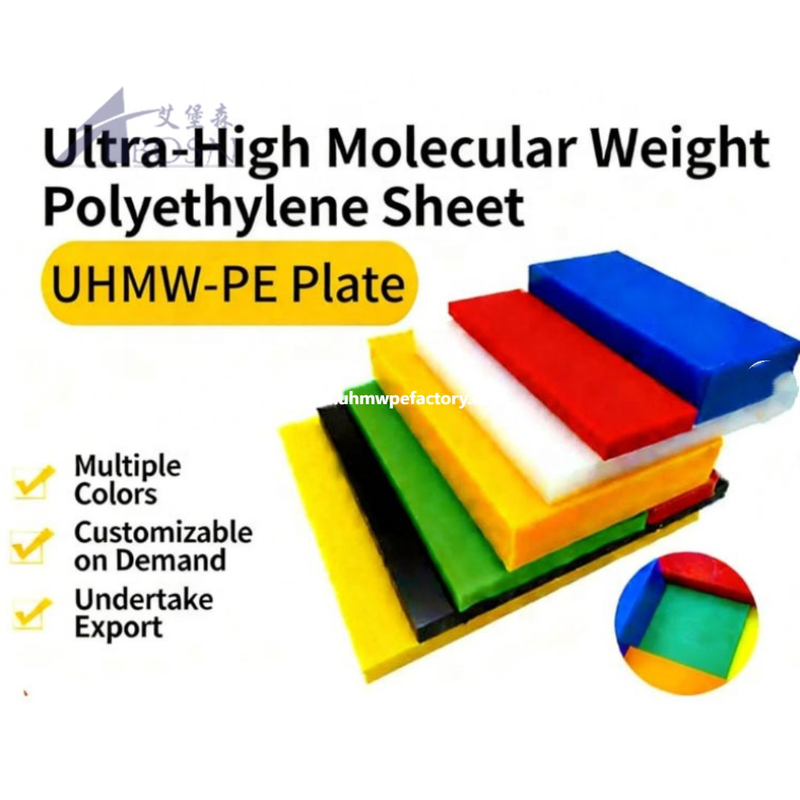

China Manufacture PE1000 / PE-UHMW Sheets - Flame Retardant-CLASS V0

Ultra-high molecular weight polyethylene UHMW-PE / PE 1000 is thermoplastic with high molecular weight (as determined by viscometric method).

PE 1000 / PE-UHMW sheets - Flame Retardant is a Self-extinguishing and Antistatic polyethylene which is highly temperature resistant and is suitable for the Mechanical engineering, Electrical industry, and Packaging industry.

Explosion and flammability are significant risks for all types of industries manufacturing flammable goods and in the coal industry.

It is vitally necessary that the UHMW lining is flame retardant in conveyor belts and bunkers. Depending on the product it is possible to enhance the functional properties of the flame retardant UHMW-PE 1000 by means of additives.

Additives inevitably increase costs, but when considering material lifetime and initial lining effort, the advantages of choosing the right material become apparent. There is no halogen and antimony in the flame retardant UHMW-PE 1000. Smoke absorption is minimum.

Model:
PE1000
Brand:
ABOSN
Code:
40002000

Availability:

Quantity:



Inquire Add to Basket

Virgin PE1000 UHMWPE Sheet Flame Retardant-CLASS V-0

Ultra-high molecular weight polyethylene (UHMWPE) is a thermoplastic engineering plastic that combines the superior properties of all plastics.
The mechanical properties are higher than that of high-density polyethylene, and it has outstanding wear resistance, impact resistance,
low temperature wear coefficient, stress cracking resistance, high temperature creep resistance, low friction coefficient,
self-lubrication, excellent chemical corrosion resistance, fatigue resistance, noise damping,
nuclear radiation resistance and other excellent properties.
It can replace carbon steel, stainless steel, bronze and other materials for textile, papermaking, food machinery, transportation,
medical care, coal mining, chemical industry and other sectors

Characteristics:

PE-UHMW sheets have great high impact strength and rigidity;
High corrosion resistance;
PE-UHMW sheets offer excellent chemical resistance;
Very good electrical insulator;
Excellent absorption of vibrations and noise;
Physiologically harmless;

Main Features:

Minimal moisture absorption
High impact strength
Easy to machine
Low friction rate

Product Specifications

ScreenShot_2026-03-19_171516_872

***Data Sheet of UHMWPE sheet

(Test Temperature:21℃ Relative Humidity:55℃)

Property	Testing Method	Value
Molecular weight 1E6 g/mol	ASTM D4020	5
Density g/cm3	ISO 1183-1	0.96
Dynamic coefficient of friction	ISO8295	≦0.11
Notched Impact Strength (Charpy) kj/m2	ISO 11542-2	140-170
Abrasion Index (Sand-slurry)	ISO/DIS 15527	100-110
Hardness (Shore D)	ISO868	68
Elongation at break at 23 degree	ISO527	≥270
Yield strength MPa	ASTM D638	45
Tensile impact Ft-lbs/in2	ASTM D1822	≥436
Water absorption	ASTM D570	≦0.1
Compressive deformation % at 1000 psi	ASTM D621	6.0-8.0
IZOD Impact Ft-lbs/in2	ASTM D4020	Non-break
Thermal Expansion	DIN53752	≈2X10^-4 K^-1
Melting Temperature	DIN53736	135°C
Operating Temperature		-80 °C to+85°C
Volume Resistivity	DIN60093	10¹⁴Ohm-cm
Surface Resistivity	DIN60093	10¹⁵ Ohm
